Steel ruler water level gauge

Commonly used to measure water levels in wells, boreholes, and water level tubes, particularly suitable for observing groundwater levels in hydropower projects

 or for manual inspection of dam seepage lines in earth-rock dams.

Self-check switch for startup

Sturdy metal bracket

SUS metal material, long service life

Anti-fatigue

Friction operation does not heat up and melt

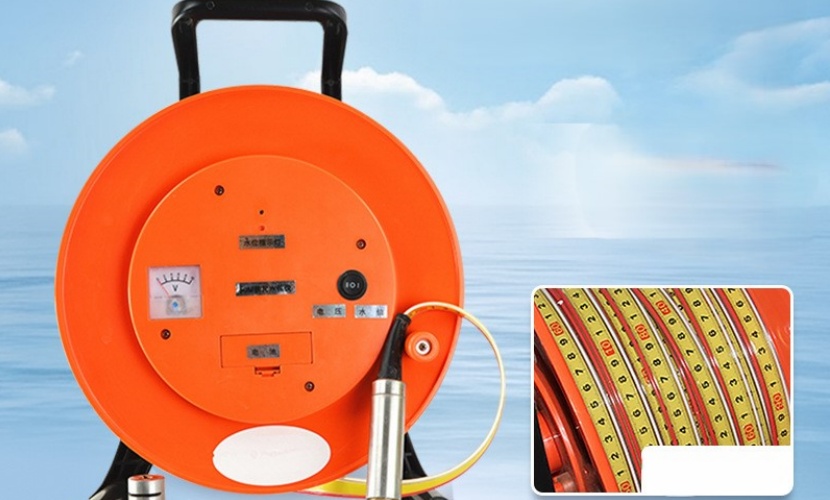

Clear scale

Portable handle

Measuring scale

Easy to move

Can directly measure water level

Easy to carry

Principle Structure

The measurement and reading of water level changes consist of two main parts:

The underground material embedding part, consisting of a water level tube and a bottom cover (purchased separately)

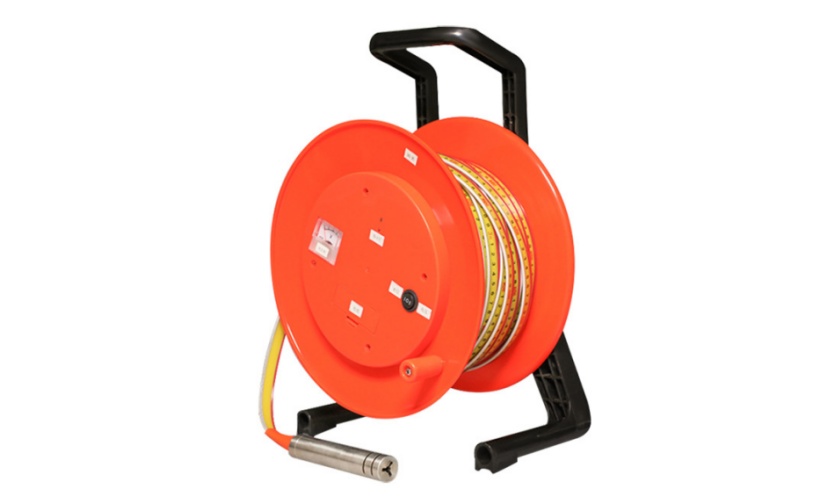

The ground receiving instrument - a steel tape water level gauge, consisting of a measuring head, a steel tape cable,

a receiving system, and a winding reel.

Measuring Head Part: Made of stainless steel, with water resistance contact points installed inside. When the contact

points touch the water surface, it will activate the receiving system. When the contact points leave the water surface,

it will deactivate the receiving system.

Steel Tape Cable Part: The steel tape and wire are combined into one using plastic technology, which prevents rust on

 the steel tape and simplifies the operation process, making the measurement and reading more convenient and accurate.

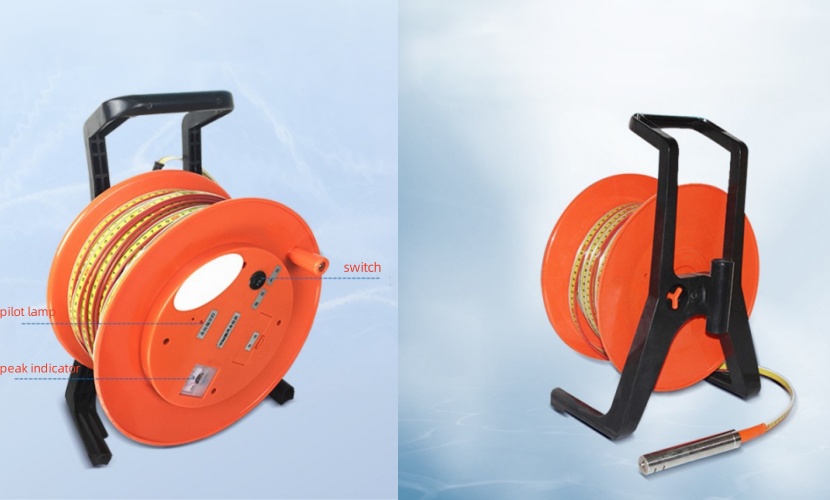

Receiving System Part: Consists of a sounder, indicator light. The sounder emits a continuous buzzing sound, and the

indicator light flashes.

Usage Method

When measuring, allow the reel to rotate freely, press the power button, insert the probe into the water level tube, hold

the steel ruler cable, and slowly lower the probe. When the contact point of the probe touches the water, the receiver

system's sounder will emit a continuous buzzing sound. At this point, read the depth measurement of the steel ruler

cable at the tube opening,which is the distance from the underground water level to the tube opening.

Precautions

A) When the probe's contact point touches the water, the sounder will emit a sound, and the indicator light will flash.

 At this point, slowly release the steel ruler cable to carefully find the exact position of the sound or indication moment,

and then read the depth measurement from that point to the opening.

B) The accuracy of the reading depends on the timely judgment of the starting position of the buzzer or indicator. The

 measurement precision is related to the operator's proficiency, so repeated practice and operation are necessary.
