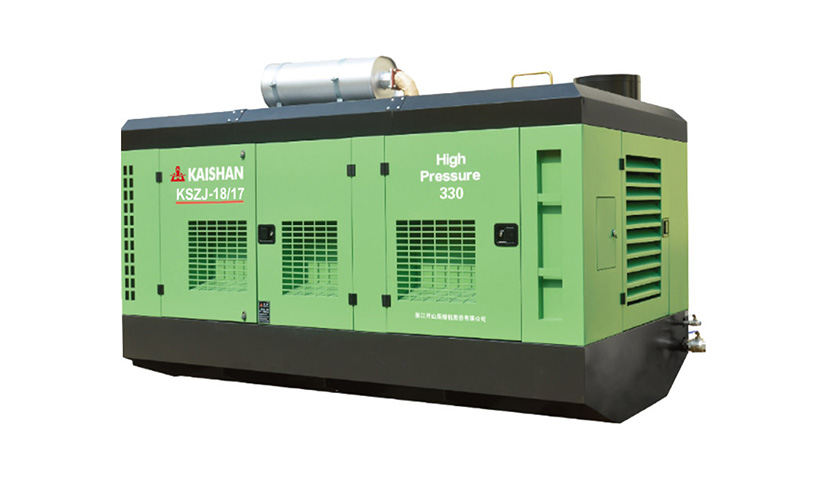

KSZJ-18/17, Kaishan Air Compressor.

OVERVIEW:

KSZJ-18/17 air compressor is widely used in highway, mining, water conservancy.Price:13500-15500 USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

KSZJ-18/17 air compressor is widely used in highway,  mining, water conservancy.
Price:13500-15500USD


1 Low noise, low vibration and easy operation


2 Low fuel consumption, long-distance outdoor use; comprehensive protection system, energy saving.

3  Diesel engine:  YUCHAI diesel engines ,low fuel consumption, and perfect after-sales service system.

4 Good adaptability: The air compressor automatically controls the air supply volume of the diesel engine by matching the demand of air consumption,

which is equivalent to the variable frequency control of the electric screw air compressor.

TECHNICAL DATA
Technical Parameters of KSZJ-18/17 Air Compressor
TypeKSZJ-18/17
Gas flow rate18m³/min
The rated exhaust pressure.1.7Mpa
Weight3200kg
Dimensions3000*1800*2000mm
EngineYUCHAI 260HP
Typevertical, inline,water cooled
Inhalation methodTurbocharged
Bore × Stroke × Number of Cylinders108*132*6
Displacement7.255L
Rated speed1800r/min
Unload speed1400r/min
Diesel oil capacity21.9L
Fuel tank capacity350L
Compression levels1
Compressor Oil Capacity48L
