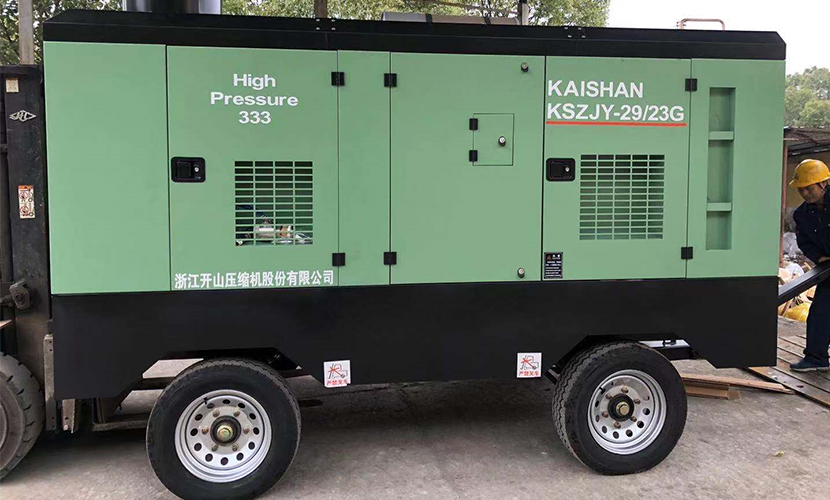

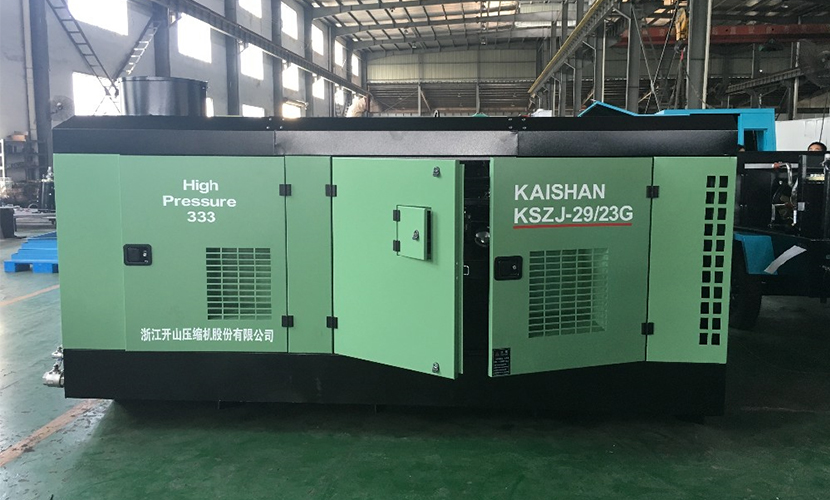

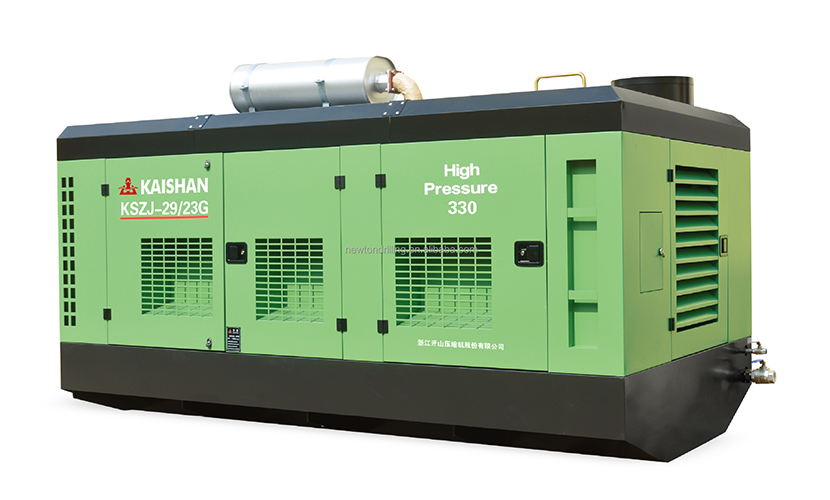

KSZJ-29/23, Kaishan Air Compressor.

OVERVIEW：

Diesel stationary screw KSZJ29/23G air compressor is widely used in highway, mining, water conservancy.Price:26,000-28,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

Diesel stationary screw KSZJ-29/23G air compressor is widely used in highway, mining, water conservancy.
Price:26,000-28,000USD

1.Low operating sound and less vibration design.

2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.

3.High efficient Airend:Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.

4.Diesel Engine of Famous Brand: Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption.

5.Good adaptability: the Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption.

TECHNICAL DATA

Technical Parameters of KSZJ-29/23 Air Compressor
Type	KSZJ-29/23
Gas flow rate	29m³/min
The rated exhaust pressure.	2.3Mpa
Weight	4850kg
Dimensions	350019002030mm
Engine	YUCHAI 400HP
Type	vertical, inline,water cooled
Inhalation method	Turbocharged
Bore × Stroke × Number of Cylinders	1201456
Displacement	9.839L
Rated speed	1800r/min
Unload speed	1400r/min
Diesel oil capacity	65L
Fuel tank capacity	350L
Compression levels	2
Compressor Oil Capacity	350L
Compressor Oil Capacity	350L
