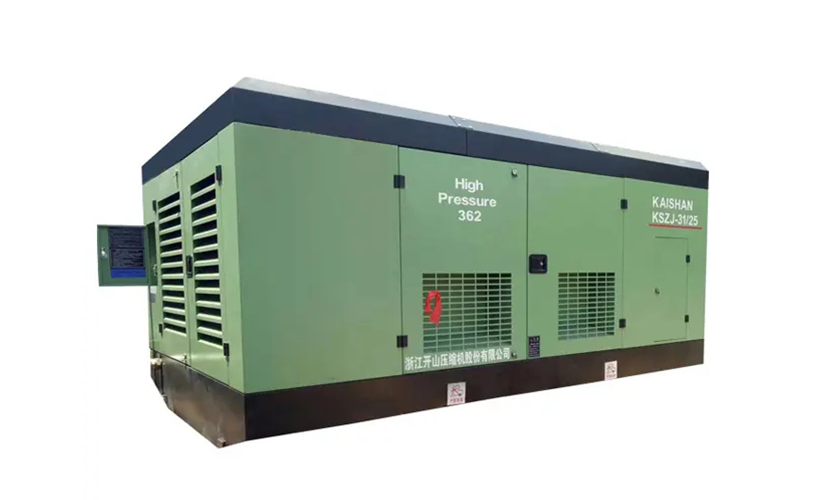

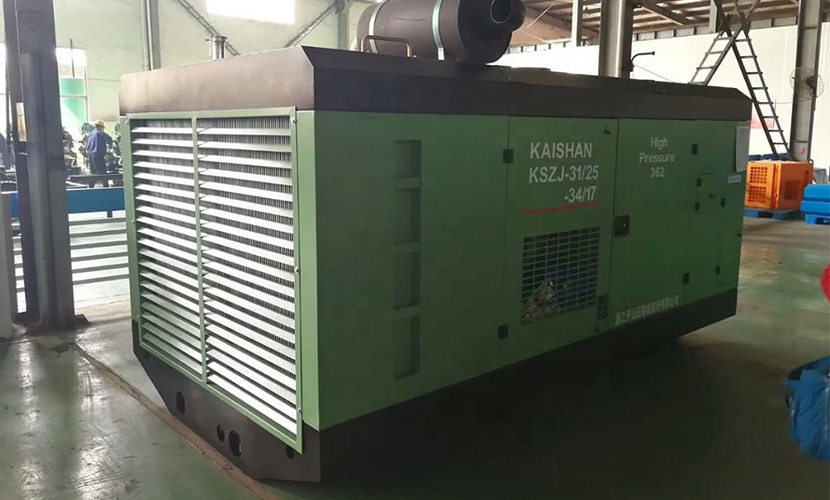

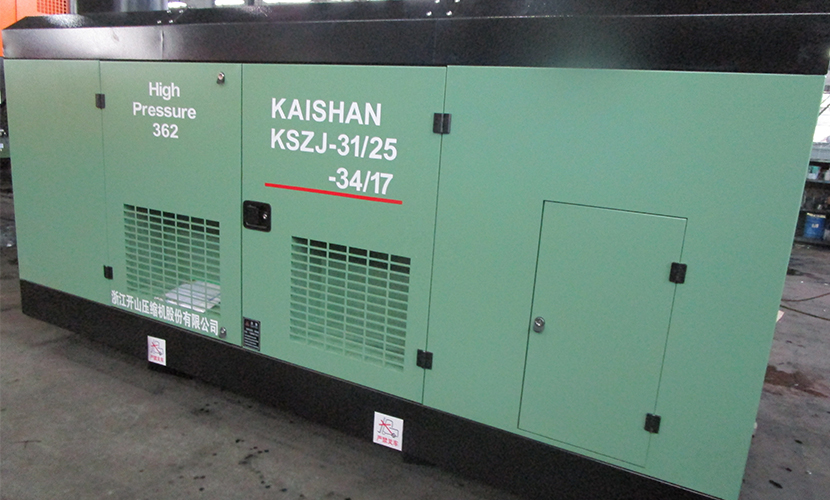

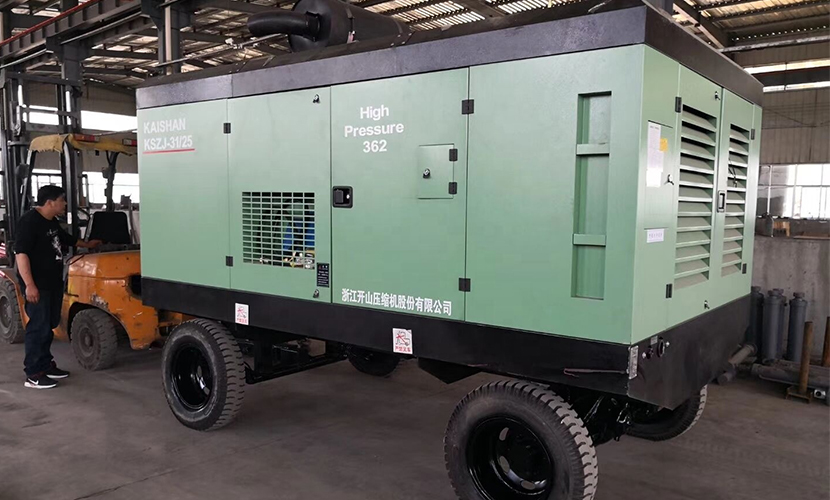

KSZJ-31/25, Kaishan Air Compressor.

OVERVIEW:

KSZJ-31/25 air compressor is widely used in highway, railway, mining, water conservancy.Price:31,000-33,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

Diesel stationary screw KSZJ-31/25 air compressor is widely used in highway, railway, mining, water conservancy.
Price:31,000-33,000USD


1. Equipped with SKY patented screw main engine and SKF bearing with the best structure and high reliability.


2. Special diesel engine, equipped with Yuchai and Cummins brand diesel engines, has stronger power and better fuel economy.


3. Double working mode switching design, convenient and fast switching between each other.


4. The computer control system fully displays the operating parameters. It has self-diagnosis, alarm and shutdown functions to ensure the safe operation of the machine when unattended.


5. Efficient cooling system ensures that the compressor is always in the best operating condition. Independent oil, water and air coolers, large diameter fan design, suitable for cold and hot climates.


TECHNICAL DATA
Technical Parameters of KSZJ-31/25 Air Compressor
TypeKSZJ-31/25
Gas flow rate31m³/min
The rated exhaust pressure.2.5Mpa
Weight5000kg
Dimensions3500*2100*2200mm
EngineYUCHAI 550HP
Typevertical, inline,water cooled
Inhalation methodTurbocharged
Bore × Stroke × Number of Cylinders129*155*6
Displacement12.2L
Rated speed1800r/min
Unload speed1300r/min
Diesel oil capacity35L
Fuel tank capacity350L
Compression levels2
Compressor Oil Capacity80L
