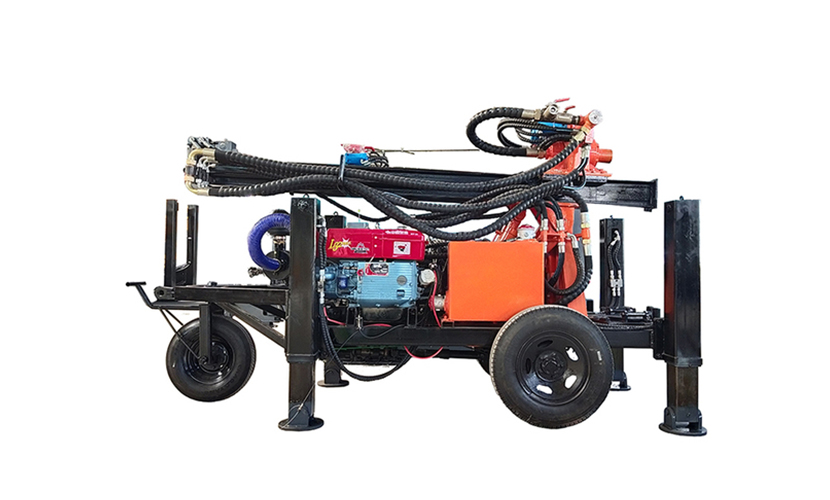

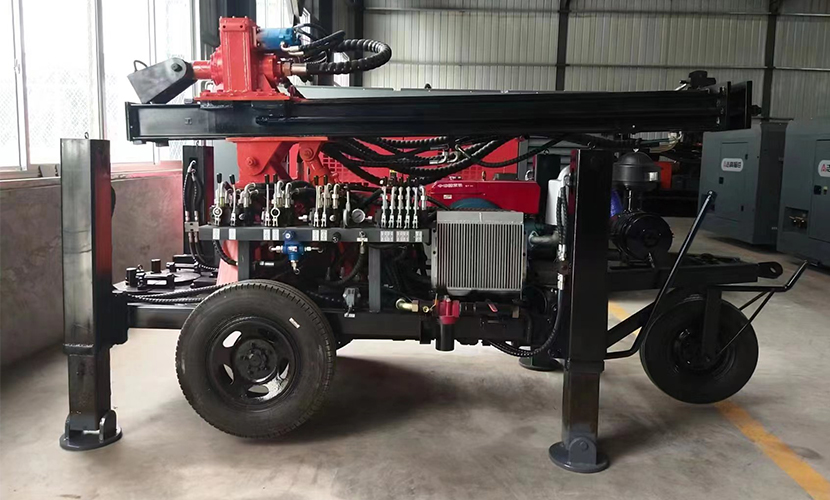

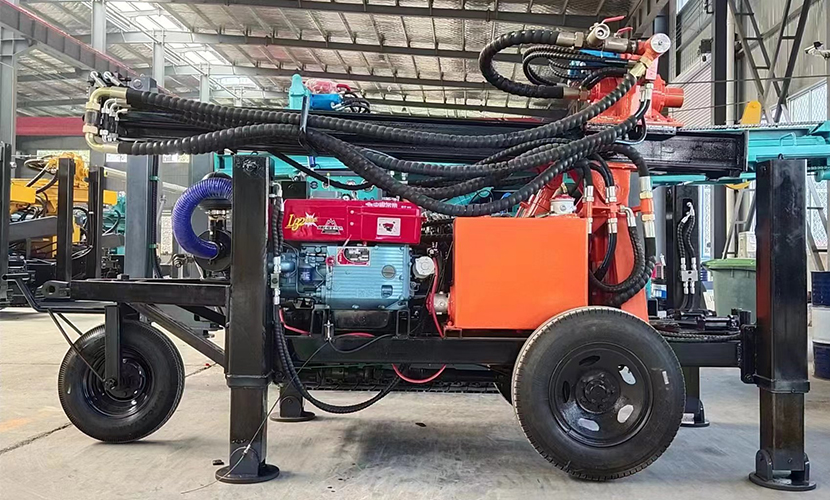

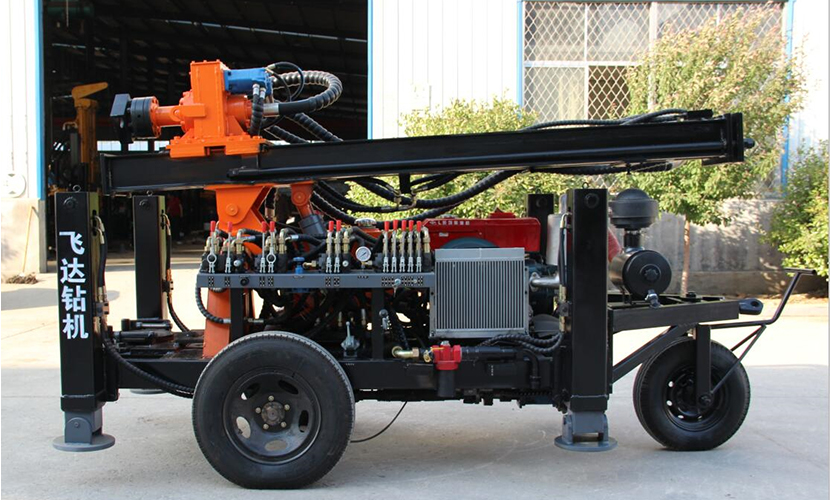

FY130 Wheel Trailer Self-driving Drilling Rig

OVERVIEW:

It is used in mining engineering construction, civil drilling, geothermal drilling and other fields, industrial and agricultu

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

It is used in mining engineering construction, civil drilling, geothermal drilling and other fields, industrial and agricultural water conservancy projects, test wells and other exploration drilling, engineering foundation reinforcement
Price:8000USD-12000USD


1. Light weight and energy saving. Low tower design for indoor drilling.

2. Patented product with unique design and simple drilling structure.

3. Easy to transport, you can learn how to operate the machine in a short time.

4. Ensure convenient operation and long service life

5. Dual systems can be added: 1. Aerodynamic system with air compressor 2. Mud pump system with mud pump

TECHNICAL DATA
Technical Parameters of FY130 Drilling Rig
TypeFY130
The Weight3T
Dimension4000*1450*2050mm
Drilling Diameter100-219mm
Drilling Depth130m
One Push Length2.3m
Driving Speed3km/h
Climbing Angles30°
Power23kw
Working Air Pressure1.45-2.5MPA
Air Consumption15-29m³/min
Drill Pipe Length1.5m  2.0m
Drill Pipe Diameter76mm,89mm
Rig Lifting Force6T
Swing Speed45-65rpm
Swing Torque2200-3000N.m
