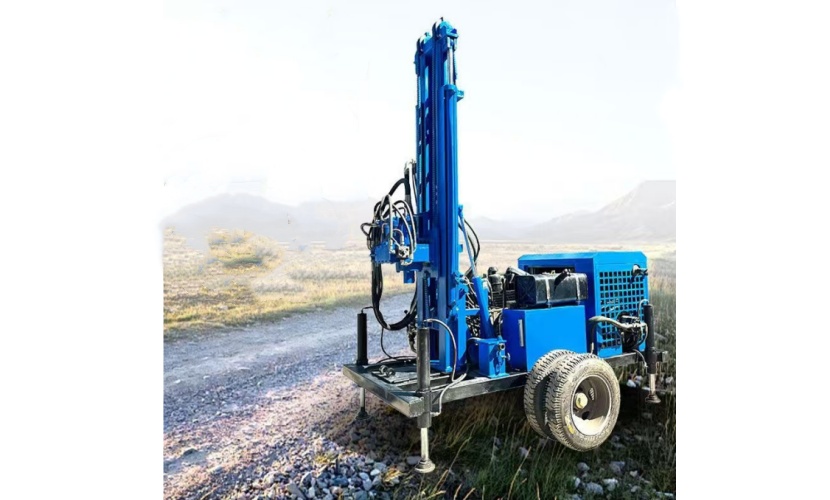

YES-300D traction water gas dual-use drilling rig

OVERVIEW:

YES-300D traction water gas dual-use drilling rig has excellent drilling efficiency in hard rock formations.

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

The YES-300D drilling machine is our latest traction water gas dual-use drilling machine, which can be used together with mud pumps and air compressors, and has excellent drilling efficiency in hard rock formations. This drilling rig has a maximum depth of 300 meters and a maximum drilling diameter of 325mm.


1.Compact structure, strong dynamic force.


 2. High power, long lifespan, large torque. Weifang Huadong engine, powerful.


 3.Humanized design, thickened tires, convenient for centralized operation and use.



 4.Thickened material, not easily damaged.


Online Video:YES-300D traction water gas dual-use drilling rig




TECHNICAL DATA
Technical Parameters of YES-300D Drilling Rig
TypeYES-300D traction water gas dual-use drilling rig
Maximum Drilling Depth300 meters
Maximum Drilling Diameter325 mm
Engine BrandHengtong Power
Engine Rated Power78 Kw
Lifting Capacity14 tons
Maximum Pressure5 tons
Maximum Drilling Length3.6 meters
Maximum Drilling Torque5000 to 6500 Nm
Maximum Drilling Speed70/200 rpm
Recommended Drill Bit Diameter76/89 mm
Transportation DimensionsLength 3.3 meters, width 1.6 meters, height 2 meters.
Total Weight2.6 tons
