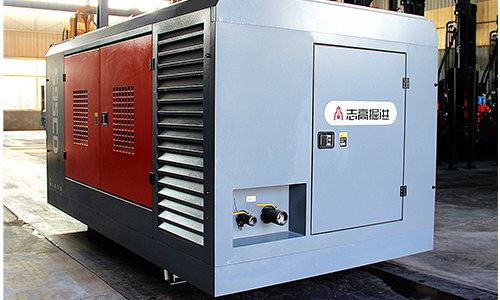

ZHIGAO S95CD Diesel Screw Stationary Air Compressor

OVERVIEW:

The series of products are designed for Wells and geothermal projects requiring Φ115-254mm Wells drilling rigsand

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

The series of products are designed for Wells and geothermal projects requiring Φ115-254mm Wells drilling rigs
and related compressed gas stations.
The whole series of products adopt the country III engine.

Price:27,000-29,000USD


1.Yuchai or Cummins engines;



2.Automatic control and protection system;



3.Error free capacity control;



4.Deluxe micro-computer florescence control panel;



5.All weather models for high altitude operations;



6.High quality filtration system with safety filters.


TECHNICAL DATA
Technical Parameters of S95CD Screw Air Compressor
TypeS95CD
Name  designationDiesel screw air compressor
Nominal displacement 29m³/min
Rated discharge pressure24bar
Maintain oil change rate90L
Compressed series2 Step
Engine typeYC6MK400-H300 YUCHAI
Engine output295kw
Fuel tank capacity420L
Dimensions3950*2000*2300mm
Total weight4700kg
Air evacuation valveG1-1/2 G2-1/2 inch
