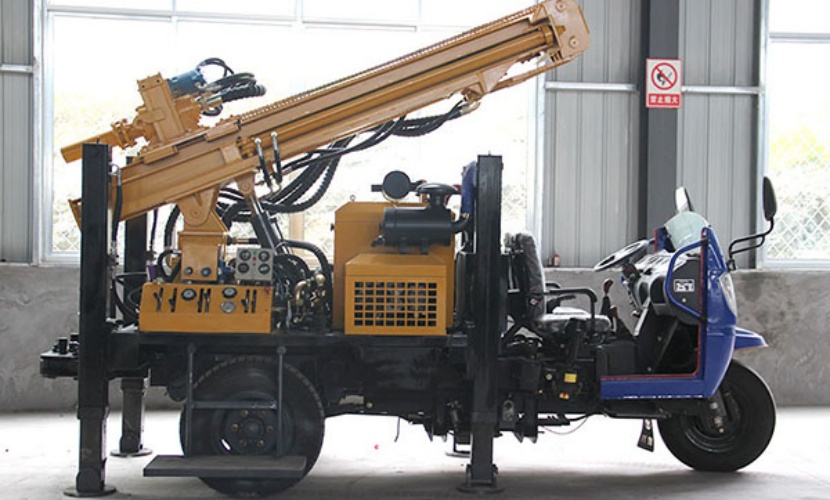

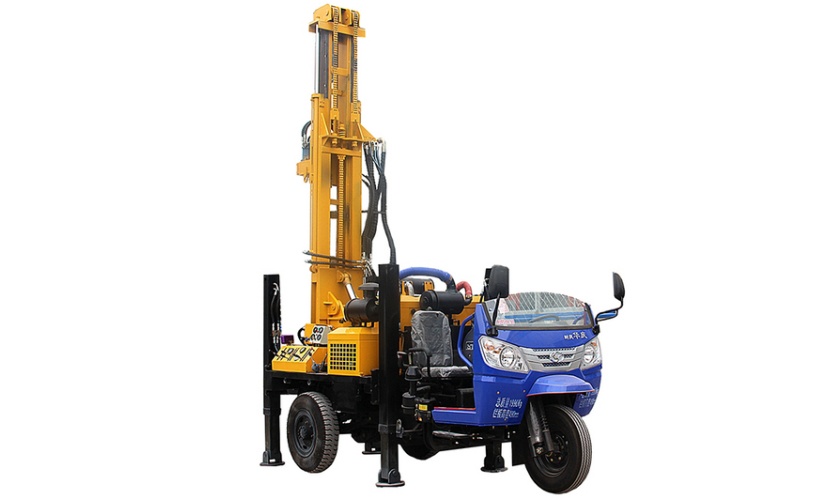

FYL200 tricycle mounted water well drilling rig

OVERVIEW：

Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling.

We're here to help:

Easy ways to get the answers you need.

Leave Message

yesdrillrig@gmail.com
+86 13140012636

FEATURES

1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;

2. Patented design compound boom, double cylinder lifting;

3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;

5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.

7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump

Online Video:https://youtu.be/P_rUTI6XQoU?si=hRe5GwsZiXxpqbuV

TECHNICAL DATA

FYL 200 vehicle-mounted water well drilling rig
The weight（T）	4.7	Drill pipe diameter（mm）	Φ76 Φ89
The hole diameter（mm）	140-254	Drill pipe length（m）	1.5m 2.0m 3.0m
Drilling depth（m）	200	Rig lifting force（T）	13
One-time advance length（m）	3.3	Rapid rise speed（m/min）	20
Walking speed（km/h）	20-40	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Swing speed（rpm）	45-65
Equipped capacitor（kw）	65	Hoisting force of winch（T）	----
Using air pressure（MPA）	1.7-2.5	Swing torque（N.m）	3400-4700
Air consumption（m³/min）	17-31	Dimension（mm）	4350×1600×2450
The penetration efficiency（m/h）	10-35	High leg stroke（m）	1.4
The engine brand	Quanchai engine
