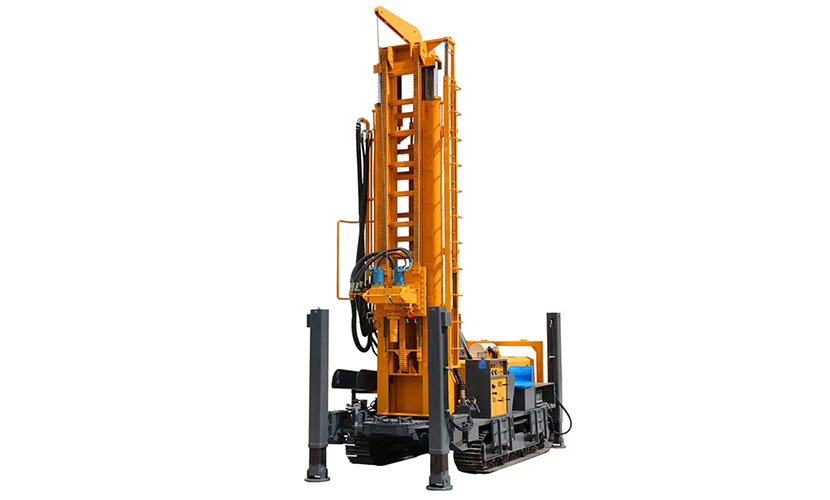

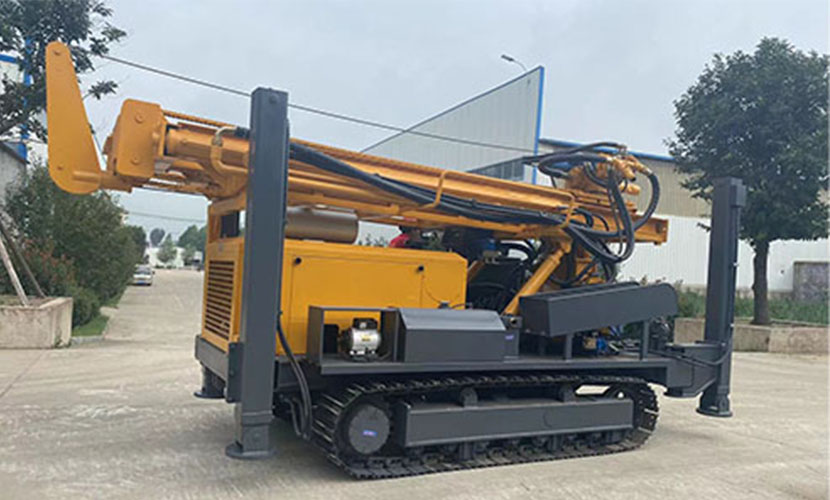

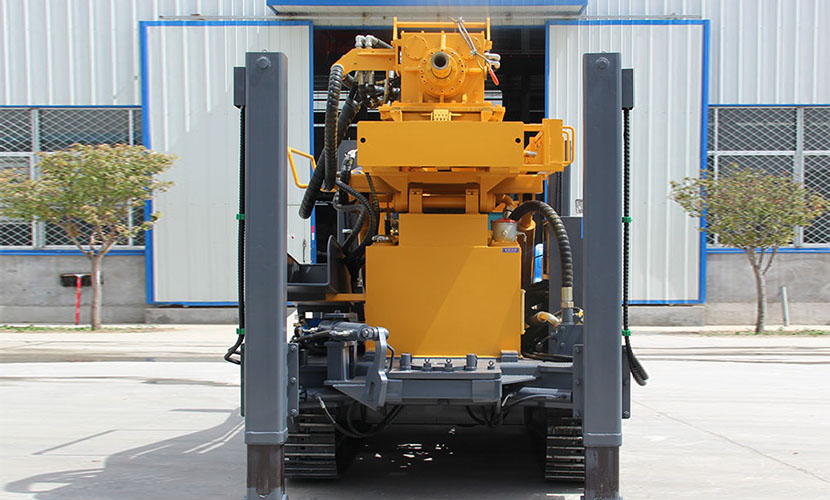

FY-800 DTH drilling rig

OVERVIEW:

FY-800 DTH drilling rig it is specialized in drilling well, monitoring well, geothermal hole.Price: 60,000-90,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

1. The engine has strong power and long service life;


2. Double oil cylinder lifts to strengthen the tower body;


3. Three oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;


4. Large hole diameter, deep hole, fast drilling speed.


5. Drilling rig chassis: reinforced steel crawler, large chassis, durable, heavy-duty


6. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.


7. Equipped with dual systems: the air drilling system is equipped with an air compressor and the mud drilling system is equipped with a mud pump


Online Video:https://youtu.be/8DNu0og1QVI?si=k1zgxNk5EnJQcZy6

TECHNICAL DATA
Technical Parameters of FY800 Drilling Rig
TypeFY800
The Weight13T
Dimension6300*2300*2950mm
Drilling Diameter140-400mm
Drilling Depth800m
One Push Length6.6m
Driving Speed2.5Kkm/h
Climbing Angles30°
Power194kw
Working Air Pressure1.7-3.5MPA
Air Consumption17-42m³/min
Drill Pipe Length1.5m  2.0m  3.0m 6.0m
Drill Pipe Diameter102mm 108mm 114mm
Rig Lifting Force36T
Swing Speed45-140rpm
Swing Torque 9000-14000N.m
