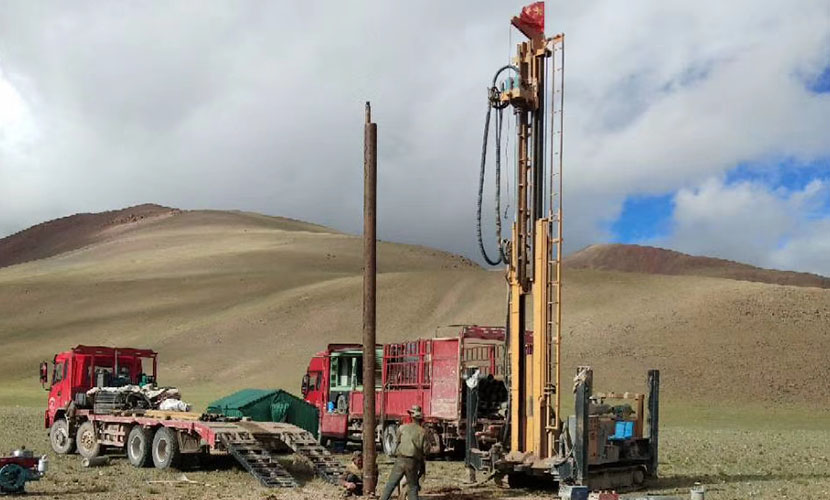

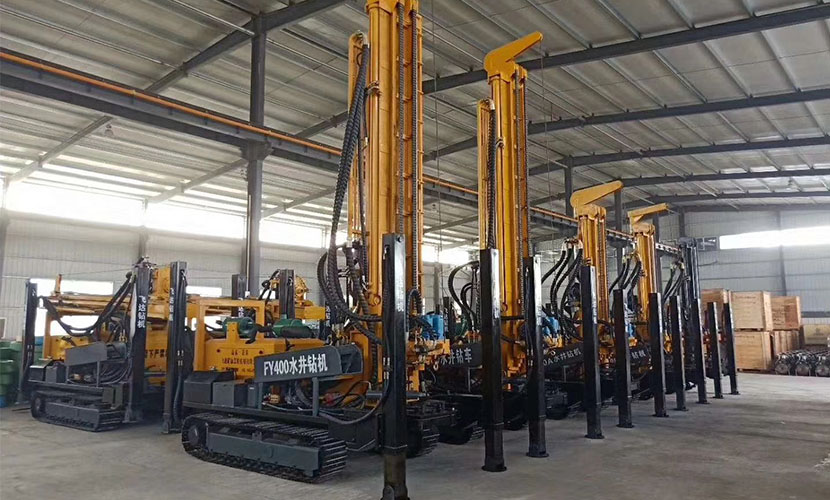

FY400 DTH drilling rig

OVERVIEW：

FEATURES

1. Maximum drilling depth 400m depth. diameter 350mm.

2. Air circulation type, should work with air compressor.

3. Crawler design let it move easily in drilling site.

4. Long hydraulic legs make it easy to be unloaded from a truck.

5. Unique design drilling motor after many test, quality steady and last long.

TECHNICAL DATA

Technical Parameters of FY400 Drilling Rig
Type	FY400
The Weight	10T
Dimension	590021002850mm
Drilling Diameter	140-350mm
Drilling Depth	400m
One Push Length	6.6m
Driving Speed	2.5km/h
Climbing Angles	30°
Power	95kw
Working Air Pressure	1.7-3.5MPA
Air Consumption	17-35m³/min
Drill Pipe Length	1.5m 2.0m 3.0m 6.0m
Drill Pipe Diameter	76mm,89mm,102mm
Rig Lifting Force	25T
Swing Speed	45-115rpm
Swing Torque	6500-9000N.m
Swing Torque	6500-9000N.m
