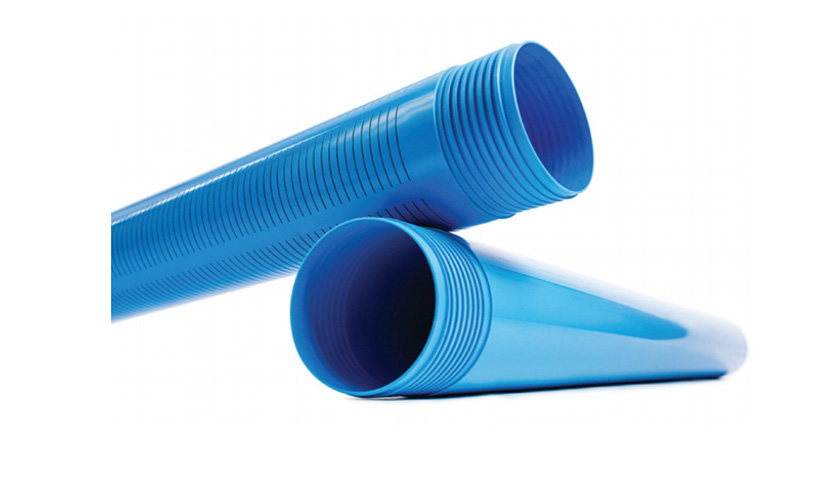

PVC water well casing pipes

OVERVIEW：

PVC pipe is widely used in water wells, water pipelines, urban underground pipe networks, etc.

We're here to help:

Easy ways to get the answers you need.

Leave Message

yesdrillrig@gmail.com
+86 13140012636

FEATURES

1.raw material with uv resistance agent

2.centralized material supply system

3.Imported advanced equipments,Dekemo molding machine

4.one production line with double moulding press,our productivity rate is three times of other common equipments.

5.one time moulding and socket-making in same production line,assures the pipes quality.

6.eco-friendly raw material assures the safety of pipes.

7.wide range choice from 16mm---800mm.

TECHNICAL DATA

outer diameter	type	thickness (mm)	pressure (Mpa)	weight (kg)	pulling force （ton）	down depth(m)
50mm(1.5inch)	light	3.7	1-1.6	2.8	1.4	160
	repetition	4.6	2-4	3.2	1.8	260
	overweight	5.6	2.5-5	3.7	2	350
63mm(2inch)	light	4.7	1-1.6	4.3	2.5	200
	repetition	5.8	2-4	5	2.5	260
	overweight	7.1	2-5.5	5.8	3	350
75mm(2.5inch)	light	5.4	1-1.6	6.1	2.8	160
	repetition	6.9	2.8-4.4	7	3.5	260
	overweight	8.4	3-5.5	8.3	4.8	350
90mm(3inch)	standard	5.4	0.8-1.25	7.3	3.5	110
	light	6.2	1.6-2	7.7	4	170
	repetition	8.2	2.5-4.5	10	6	260
	overweight	10.1	3-5.5	12	7.2	350
110mm(40inch)	standard	5.1	0.8-1.25	8.3	6	100
	light	6.4	1-1.6	10	7.2	150
	repetition	8	2.5-4.8	12	10	260
	overweight	9.8	3-6	14.6	12	350
140mm(5inch)	standard	6.5	0.8-1.25	14.5	8	120
	light	8.1	1.6-2	16.2	9.7	160
	repetition	10	2-4	19.4	15	260
	overweight	12.3	2.5-5	23.3	17	350
160mm(6inch)	standard	7.8	0.8-1.25	19.2	12	110
	standard	9.2	1.6-2	20.9	15	160
	repetition	11.4	2-4	25.1	20	260
	overweight	14.2	2.5-5	30.1	25	350
