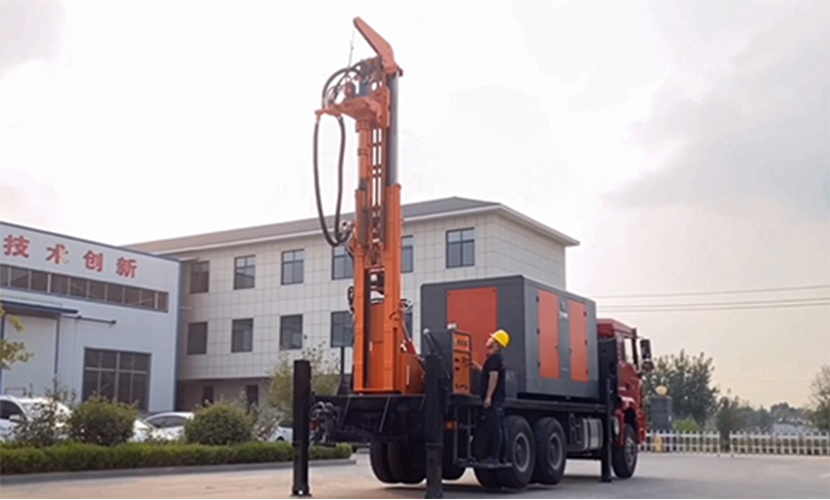

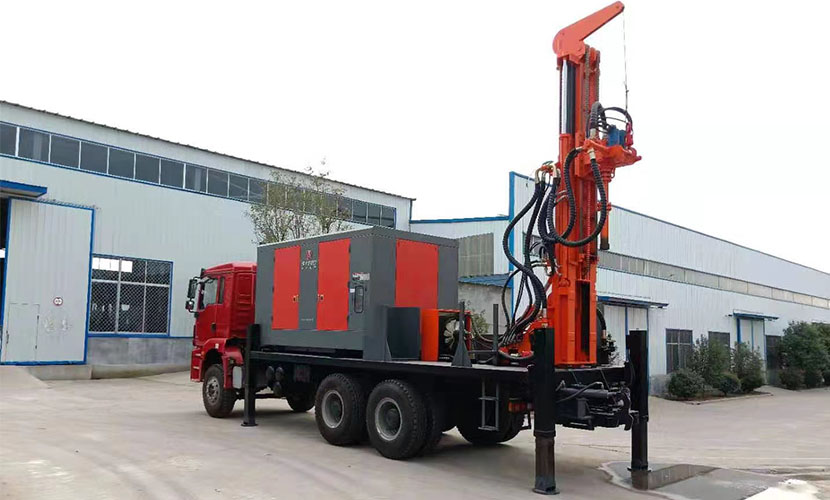

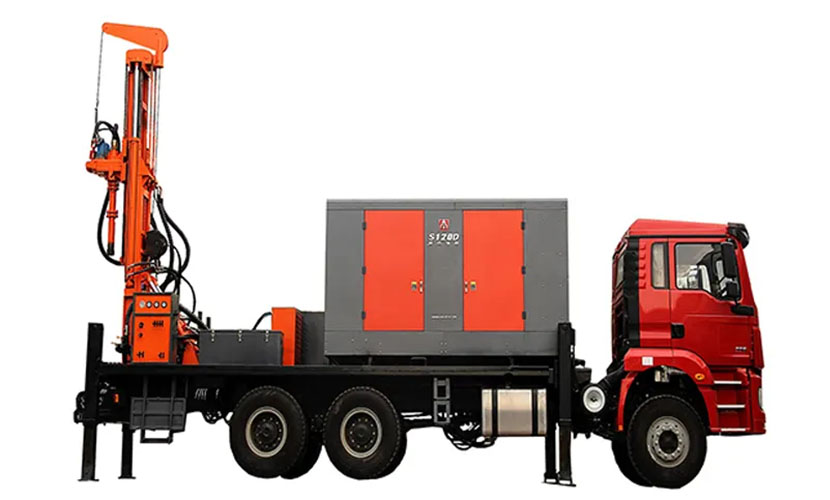

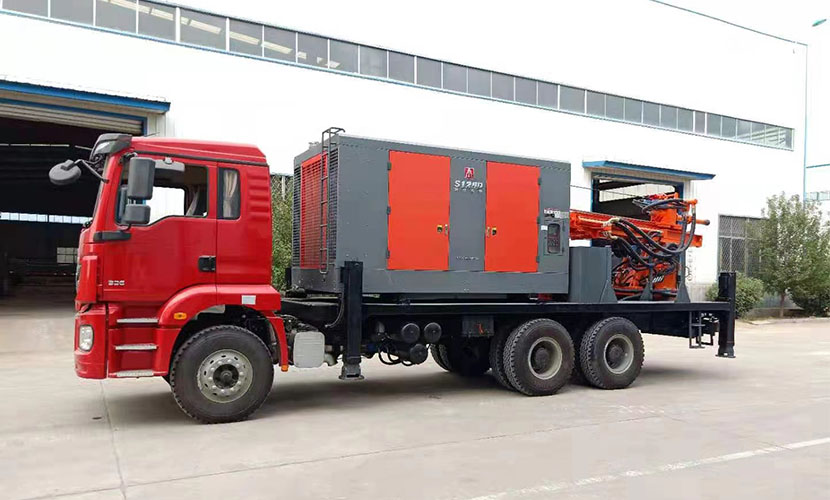

FY-350T DTH drilling rig

OVERVIEW：

FY350T is mainly used for industrial and agricultural wells, geothermal wells.Price:60,000-100,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

yesdrillrig@gmail.com
+86 13140012636

FEATURES

1.The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control, enhance the work efficiency.

3. 92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

4.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

5.It can set up a generator which is convenient to welding or illuminate for work at night.

6.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

7. Low cost of maintain.

Online Video: https://youtu.be/2zAtAw6zI80?si=reWmfpEItA5njKUs

TECHNICAL DATA

Type

FY-350T

Drilling Diameter

140-325mm

Max. Drilling Depth

350m

Equiped Capacitor

92KW

On-board vehicle

Howo truck

Drill Pipe Diameter

89mm

One-time Advance Length

6.6m

Truck engine power

Cummins 290HP

Rig Lifting Force

22T

Walking Speed

80km/h

Using Air Pressure

1.7-3.4MPA

Driving form

6*4

Automobile carrying capacity

front axle 5.5t rear axle 11.5t

Tyre size

12R22.5

The Penetration Efficiency

Steering wheel

Swing Speed

66-135rpm

Swing Torque

6200-8500N.m

Truck Gear

Boundary dimension

11200*2450*3210mm
