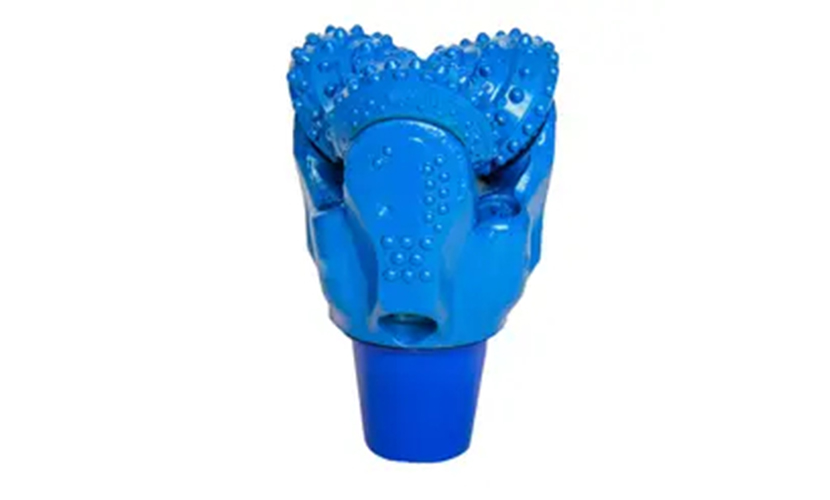

Tricone drilling bit

OVERVIEW:

The main application areas include construction engineering, industrial and agricultural water use,etc.Price:500USD-10000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

The main application areas include construction engineering, underground pipeline engineering, hydrological survey, industrial and agricultural water use, foundation engineering, and geothermal energy.
Price:500USD-10000USD


1. Cutting structure: The tooth surface of the steel tooth drill bit is made of high-quality tungsten carbide hardfacing, enhancing the wear resistance of the teeth.

2. Hard alloy nozzle: It can control the flow of water, reduce the heat generated during the drilling process, and increase the service life of the drill bit.

3. Thread: The upper part of the drill bit has threads for connection with the drill collar.

4. Hard coating: The hard coating has a hard alloy layer, which can reduce bearing wear and greatly improve the service life of the drill bit.

5. Silver plating: Compared with traditional processes, it reduces wear and improves the performance of the drill bit.

6. Professional welding technology: For the vulnerable points of the drill bit, professional welders provide targeted protection, providing a protective film for the drill bit.

TECHNICAL DATA
Bit sizeAPIMarking up torqueWeight
InchmmInchKN.Mkg
3 1/295.32 3/84.1-4.75
4 5/8117.52 7/86.1-7.56.5
4 3/4120.77
5 1/2139 5/73 1/29.5-12.217
5 7/8142.918
6152.419.5
6 1/4158.819.5
6 1/2165.119.5
6 3/4171.521
7 1/2190.54 1/216.3-21.728
7 7/820029.5
8 1/4209.638
8 3/8212.738
8 1/2215.938
8 3/4222.340
9 1/2241.36 5/838-43.457.5
9 7/8250.860
10 5/8269.974
11279.485
11 5/8295.389
12 1/8304.894
12 1/4311.295
12 15/32315.997
13 1/8333.4120
13 5/8346.1120
13 3/4349.3120
14 5/8368.37 5/846.1-54.2160
14 3/4374.7160
15381185
15 1/2393.7189
16406.4205
17 1/2444.5255
20508443
22558.8580
24609.6650
26660.4810
