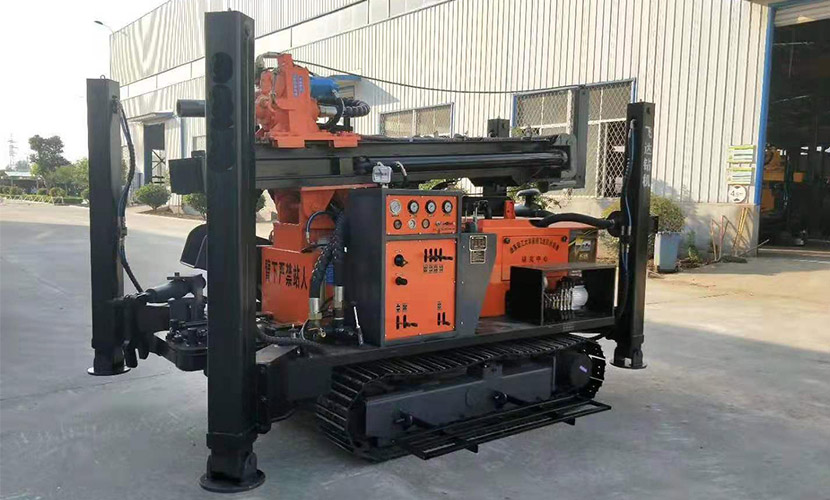

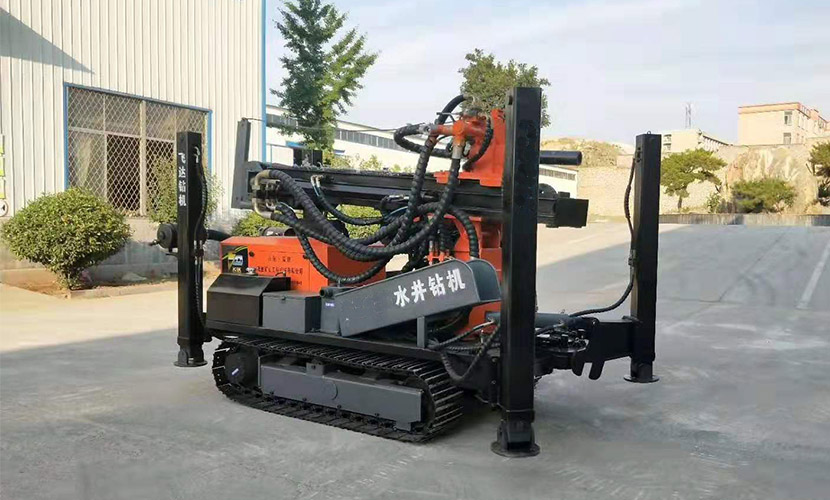

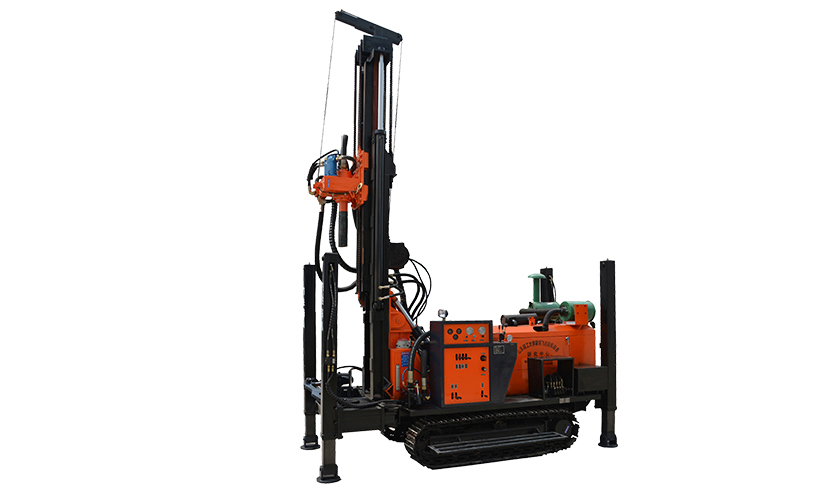

Crawler FY200 borehole drilling rig

OVERVIEW：

This Crawler FY200 drill 200m depth, in rocky area, use air drillingPrice: 16,000USD-30,000USD

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

Pneumatic drilling rig is a fast deep water well drilling equipment that uses high-pressure air as the power source. It is suitable for drilling wells for industrial and civilian use,

geothermal drilling, and other purposes, especially for water intake projects in mountainous rock formations.

1. This FY200 can break through hard rocks layers easily,

2. With crawler system, it can be driven easily in mud area, not easy be stuck.

3. The patented design of the composite boom, double cylinder lift, long trip, high tonnage

4. Parallel transmission design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system

Online Video:https://youtu.be/Wv7sn72c0Zs?si=CNTbVtRE1vyBtqIr

TECHNICAL DATA

Technical Parameters of FY200 Drilling Rig
Type	FY200
The Weight	5.8T
Dimension	4000175002450mm
Drilling Diameter	140-305mm
Drilling Depth	200m
One Push Length	3.4m
Driving Speed	2.5km/h
Climbing Angles	30°
Power	65-70KW
Working Air Pressure	1.7-3.0MPA
Air Consumption	17-30m³/min
Drill Pipe Length	1.5m 2.0m 3.0m
Drill Pipe Diameter	76mm,89mm,102mm
Rig Lifting Force	12T
Swing Speed	45-70rpm
Swing Torque	3500-4800N.m
Swing Torque	3500-4800N.m
