YES-150D diesel hydraulic water well drilling rig

OVERVIEW:

This YES-150D Plus is new improved version.It can drill up to 150m depth,diameter ranges from 75-300mm.Price:2000-3800USD.

We're here to help:

Easy ways to get the answers you need.

Leave Message

FEATURES

This YES-150D water drilling machine is widely used for geothermal drilling, farm irrigation, house yard,

gardens and water well drilling, drilling diameter is 80-300mm, and max drilling depth is 150m.


1.This small drilling rig has a small footprint (1 square meter), a standing height of 2 meters, and a working

time of less than 10 minutes. Can be used both indoors and outdoors on site.


2.The well casing is fully enclosed, with no shallow leakage, ensuring the health and safety of drinking water.


3. independently developed, breaking through the difficult problem of easy drilling and difficult disassembly.


4.All lifting and loading/unloading of drill pipes are mechanized, saving time and effort, and easy to operate.


5 advantages:


5.1 Single person operation, saving labor costs.


5.2 Equipped with universal wheels for easy transportation.


5.3 Affordable and can be owned by ordinary families.


5.4 Lightweight, easy to operate, and very convenient to install.

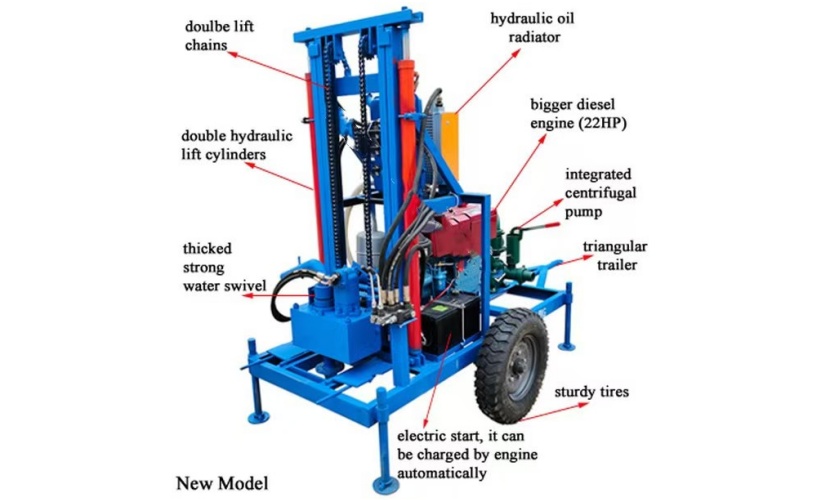

YES-150H diesel hydraulic water well drilling rig(图1)

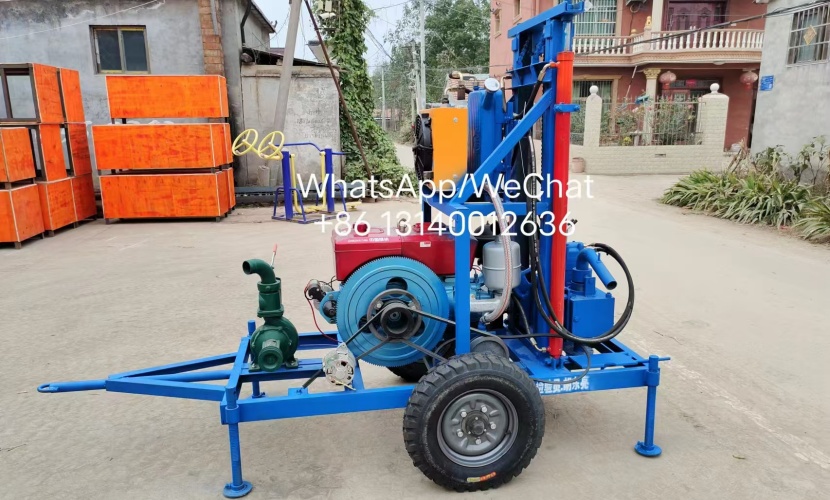

YES-150H diesel hydraulic water well drilling rig(图2)


Online Video:https://youtu.be/Q_stwjwdrhE?si=pSkQLqDLY6ZFI5lA

TECHNICAL DATA
Specification
Type
YES-150D diesel hydraulic water well drilling rig
Power Type
Diesel
Dimension(L*W*H)
1100*1900*1800mm
Weight
1100kg
Certification
ISO9001;CE
Warranty
1 Year
Drilling Diameter
300mm,, 75mm, 60mm, 100mm, 200mm
Application
Water Wells Rock Drill Rig
Feature
Hydraulic Controlling
Max Drilling Depth
150m
Drill rod length
1.5m/2m/3m/6m
Advantage
Water Holes
Drill rod diameter
51 Mm
Motor power
25 Hp
Engine
Diesel Engine Power
